Product Details:
Payment & Shipping Terms:
|
| Material: | ABS | Color: | Black |
|---|---|---|---|
| Reaction Time: | 100ms | Frequency Range:: | 20 KHz To 170 KHz |
| Dimension: | 78x40x108 Mm | Gross Weight: | 340g |
| Connection: | 11-pin Socket | Sensitivity: | 4 Grade |

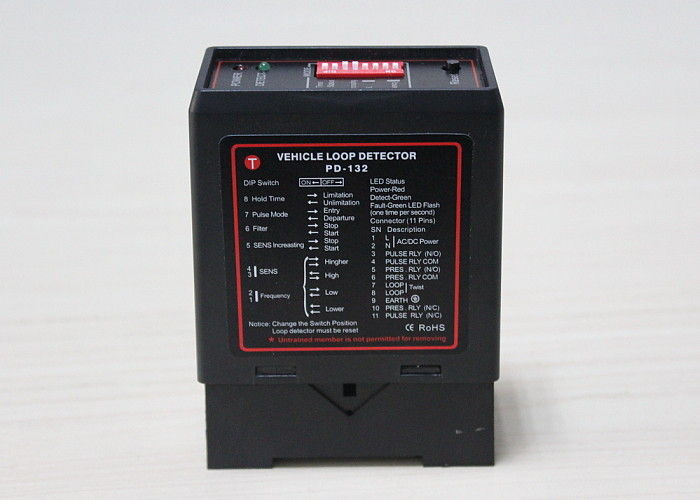

Black Magnetic Loop Detector To Protect Car Hit From Barrier Gate Boom
Introduction:

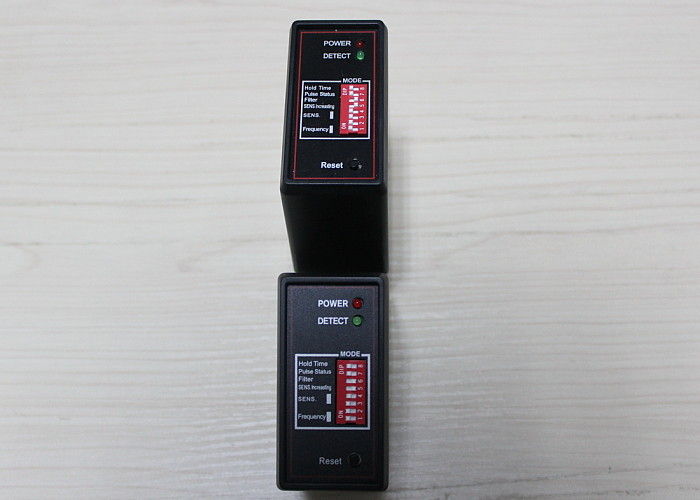

PD-132-1 Vehicle Single Loop Detector allows for detection of metalic objects entering into the
field formed around the detection loop, for example for monitoring and safe-guarding accessways or for counting vehicles. The output signal can be used for controlling door and gate drive mechanisms, operating barriers, controlling traffic light systems or activating card dispensers in parking lots.
Applications:
1. traffic light
2. vehicle monitor
3. Parking lots count system
Technical parameters:
1. PD132-1 single channel;
2. Operating temp: -30C~ +75C
3. Storage temp: -40C~ +85C
4. Relative humidity: ≤95%
5. Shell: PC + ABS engineering plastics
6. Installation: DIN rail
7. Dimensions: 78x40x108 mm (L×W×H)
8. Net Weight: 340g
9. Operating voltages:AC220V±10%
10. Power consumption: 5W
11. Relay output: DC24V /3A
13. Frequency range: 20kHz 170kHz4 grades adjustable
14. Reaction time: 100 ms
15. Output Relay:output
16. Connection: 11-pin socket
17. Sensitivity: 4 grades adjustable
18. Loop inductance: Ideal 100µH300µH(include connecting wiring); Max 50µH1000µH(include
connecting wiring)
19. Loop conn. Wiring: Max 100m, twisted at least 20 times per meter, total resistance <10 Ohm
20. Automatic calibration time:2s~ 5s
