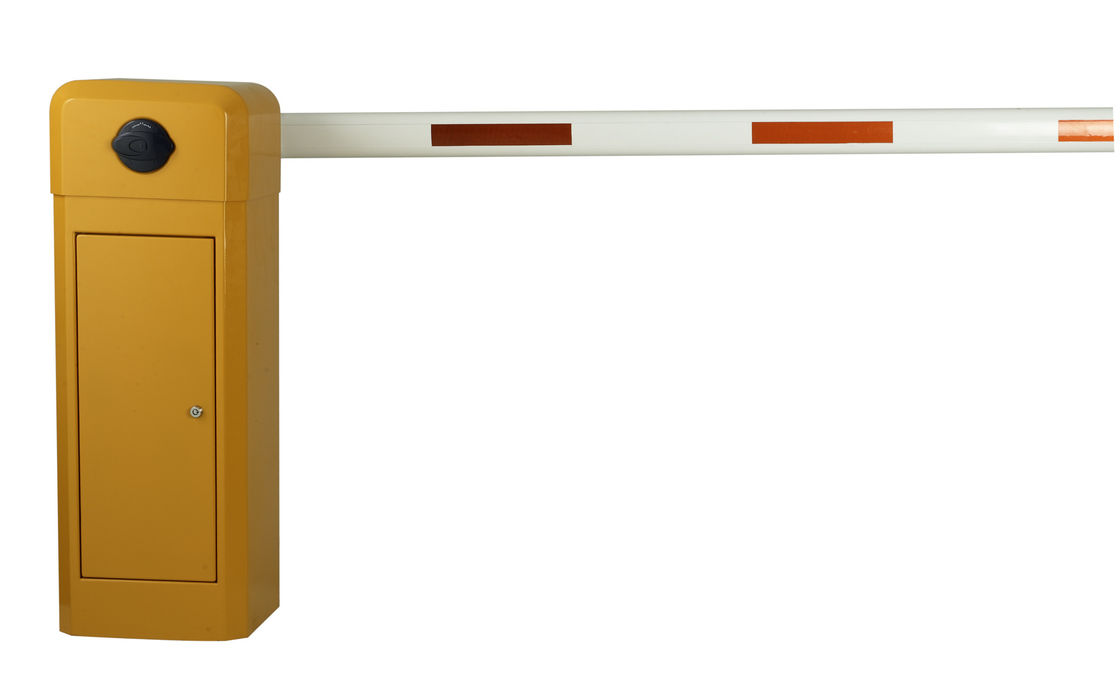

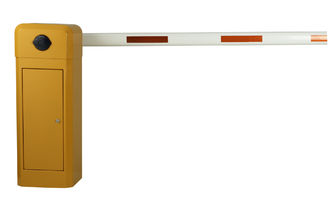

High Security Traffic Boom Barrier Gate Car Parking System , Manual Release

: Large Image : High Security Traffic Boom Barrier Gate Car Parking System , Manual Release

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Integer
Certification:	CE, ISO, SGS
Model Number:	IBG-102

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD300~400/unit
Packaging Details:	Carton(1 unit): 1020375467mm
Delivery Time:	5~15
Payment Terms:	T/T
Supply Ability:	3000units per month

Detailed Product Description

Model:	IBG-102	Working Temperature:	-40℃～+75℃
Rated Power:	80w	Net Weight:	60kgs
Speed:	3S, 6S	Max Boom Length:	3~6 Meters

High Security Traffic Boom Barrier Gate Car Parking System , Manual Release

Quick Detail:

Name: Barrier Gate

Net Weight: 60KG

Application : Highway toll

Feature: Manual release

Rated Power: 80W

Certificate:CE, ISO, SGS

Speed:3/6 second

Voltage: AC220V, AC110V

Functions & Features:

⑴. Manual release device to operate the barrier when power failure

⑵. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation

⑶ Motor cooling fan to avoid the over-heating possibility

⑷. Automatic reversing when the barrier boom meets the obstruction

⑸. Auto closing realization through menu setting on the control panel

⑹. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers,

manual switch (wire control), and traffic light

⑺. RS485 Communication Module is compatible

Applications:

IBG-102 Barrier Gate uses the first generation motor. It is stable and has long service life performance,

running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted,

so that the barrier can work with parking system very well, and can be used in door and outdoor.

Specifications:

Model	IBG-102
Working Temperature	-40℃～+75℃
Voltage	220V±10%, 110V±10%, 50/60HZ
Rated power	80w
Relative humidity	≤90%
Remote control distance	≥30m
Net weight	60kgs
Speed	3S, 6S
Max boom length	3~6 meters
