Product Details:
Payment & Shipping Terms:
|
| Model: | IBG-2012 | Working Temperature: | -40℃～+75℃ |
|---|---|---|---|
| Speed: | 0.9s,1.5s, 3s, | Boom Length: | 3m |
| Weight: | 60kg | Voltage: | AC 220v,110v |

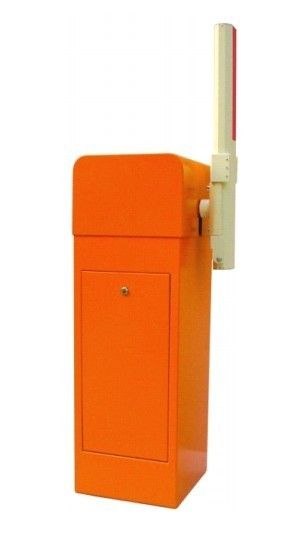

Magnetic Automatic Vehicle Barrier Gate For Parking Lot / Driveway
Technical Parameters:
|
Parameters |
IBG-2012A |
IBG-2012B |
IBG-2012C |
IBG-2012D |
|
Supply voltage |
AC230V / AC110V |
AC230V / AC110V |
AC230V / AC110V |
AC230V / AC110V |
|
Power Frequency |
50/60Hz |
50/60Hz |
50/60Hz |
50/60Hz |
|
Rated Power |
80W |
80W |
80W |
80W |
|
Rated Rotary Speed |
30 r/min |
25 r/min |
15 r/min |
10 r/min |
|
Rated Torque |
12N·m |
18N·m |
24N·m |
30N·m |
|
Standard Arm length |
2.5m |
3.0m |
4.0m |
5.0m |
|
Noise |
≤60dB |
≤60dB |
≤60dB |
≤60dB |
|
Raising/Falling Time |
0.9s |
1.4s |
1.8s |
3.2s |
|
Service Life |
≥5million times |
≥5million times |
≥5million times |
≥5million times |
|
Error Action |
≯0.01％ |
≯0.01％ |
≯0.01％ |
≯0.01％ |
Features:
Fast speed barrier gate, for toll way or super high way.
The appearance of the products is attractive, after special spraying treatment, the surface is full of modern taste. The structure of the products is light and compact, waterproof and antirust.
These products are a combination of mechanism, photoelectric and electricity control, easy to operate, with safe and reliable.
The system has auto extreme position locking function or manual rail-lifting alarm function (optional).
The device made by advanced DC servo control technology, ensuring the working of whole system precise and stable.
Whole circuit system without connecting points control, ensuring the working of whole system safe and stable.
Use PWM speed adjustment device to actualize stepless shift, the speed can be selected according to the needs of the site.
Rolling menu button is convenient for the parameter setting according to the necessity.
The system can collect the rail running data and calculate out whether the rail is touching the obstacle, if it is, the rail will stop or lift up immediately.
With a variety of control mode, the system can either be manually controlled by trigeminy button and remote controller, or auto-controlled by vehicle detector, and can also be remote controlled and managed by 485electrical interface.
Rail lifting times record: in the course of running, the system will remember the times of rail lifting ordered by rail-hold controller, then the rail will be hold open until the sensing times of vehicle passing detected by vehicle detector is equal to the times of rail lifting ordered by rail-hold controller.
Manual rail lifting: in case of power failure, then push the rail up by hand directly.
Bump-proof: Rails shorter than 4 meters have this function, and is optional. When vehicle intrudes in by force, the rail will break away from the machine rapidly under large outside force, so as to protect the machine and the rail.
