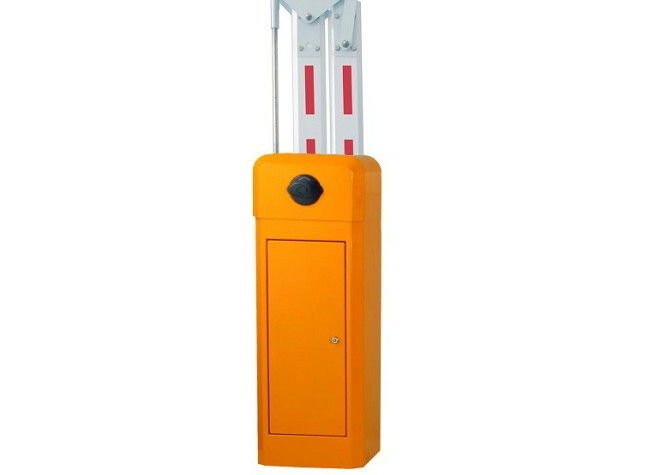

Vehicle Electric Parking Barrier Gate With 180 Degree Folding Aluminum Boom

: Large Image : Vehicle Electric Parking Barrier Gate With 180 Degree Folding Aluminum Boom

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Integer
Certification:	CE, ISO, SGS
Model Number:	IBG-103

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	Carton(1 unit): 1020375467mm
Delivery Time:	5~15
Payment Terms:	T/T
Supply Ability:	3000units per month

Detailed Product Description

Model:	IBG-103	Working Temperature:	-40℃～+75℃
Speed:	3s, 6s	Boom Length:	3m~6m
Weight:	60kg	Voltage:	AC 220v,110v

Vehicle Electric Parking Barrier Gate With 180 Degree Folding Aluminum Boom

High quality parking and vehicle folding parking barrier gate
1. RS485 Communication
2. Heavy Duty
3. 5--8 Million Times Duty

1. Technical Parameters

1	Power	220V±10%, 110V±10%, 50/60HZ
2	Running Time	1.5s, 3s, 6s
3	Motor	80W
4	Operating Temperature	-40°C-60°C
5	Relative Humidity	≤95%, No condensation
6	Communication Distance	≥30m
7	Boom length	Max 6 meters
8	Cabinet Color	orange, customized color available
9	Communication Connection	RS485 Communication
10	Boom Type	straight, articulated, fence arm
11	related accessories	infrared sensors, loop detectors,traffic light, UHF readers
12	Application	vehicle access control & car parking lots
13	Cabinet	Powdered painting, stainless steel is available
14	Protection level	IP54
15	Application	Parking Lots, Toll Gates, Goods Yards, Railway Crossings, Commercial Premises, Aparment Block Access

2. Functions& Features

1. Manual release
2. Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3. Die-casting aluminum alloy motor, precision and good at thermal radiating
4. Motor cooling fan, solving the problem of heat-protection
5. Double safety limit switches (photoelectricity limit switch/motor memory sensor)
6. Reversing on obstacle
7. Auto-closing
8. Support the INFRARER PHTOCELL for anti-bumping function (optional)
9. Support the external and internal VEHICLE LOOP DETECTOR (optional)
10. Traffic light interface
11. Wire control (switch signal)/ Remote control (418MHZ)
12. RS485 communication module

Vehicle Electric Parking Barrier Gate With 180 Degree Folding Aluminum Boom
