Product Details:
Payment & Shipping Terms:
|
| Model: | IBG-201 | Color: | Optional |
|---|---|---|---|
| Weight: | 60kg | Relative Humidity: | ≤90% |
| Rated Power: | 80w | Voltage: | AC 220v, 110v |

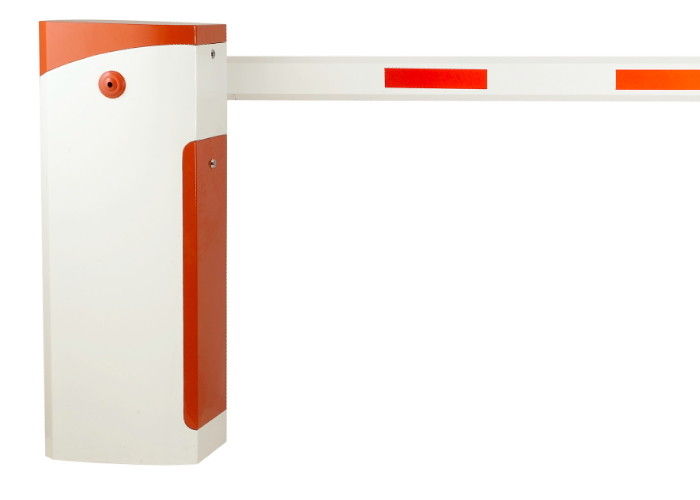

Entrance Road Parking Barrier Gate / Parking Lot Security Gates With 3m / 6m Boom
1. Integer classical industrial and scientific design.
2. Built with worm gear and shaft design for transmissible system , energy-saving and durable.
3. Automatically brake , support manual raising while power off.
4.Open,close and stop by remote sensing handle or desk remote controller.
5 .Infrared anti-smashing function.
6. Limit open and close.
7. Provide ground sensor interface .
8. Provide drive-by-wire interface to open/close and stop.
9. Compatible with other parking subsystems.
Technical Parameters
Power Supply AC220V±10% 50Hz / DC110V-220V 50Hz
Motor Power ≤500W
Relative Humidity ≤95% non-condensing
Working Temperature -25℃~+75℃
Rail open time 2S
Remote control frequency 433.92MHz
Length of rail ≤4m
Detailed Product Description
Security Parking Automatic Barrier Gate with Remote Control 50/60 HZ
Quick details:
1. voltage:AC220v+/-10% or AC110V
2. Standard lever length:<=6m
3. Rising/Falling time:3s or 6s
4. Working model:remote control,push button and manual handel
5. Working environment: indoor or outdoor
6. Working temperature:25°C-60°C, relative humidity <95%, without dew
INTEGER can also provide the following products:
IC/RF ID/magnetic cards and card reader, automatic card dispenser, loop detector, card collector, tickets transport machine, micro printer, barrier gate, parking guidance system.
