Magnetic Straight Boom Barrier Gates With Aluminum Alloy Rail / Remote Control

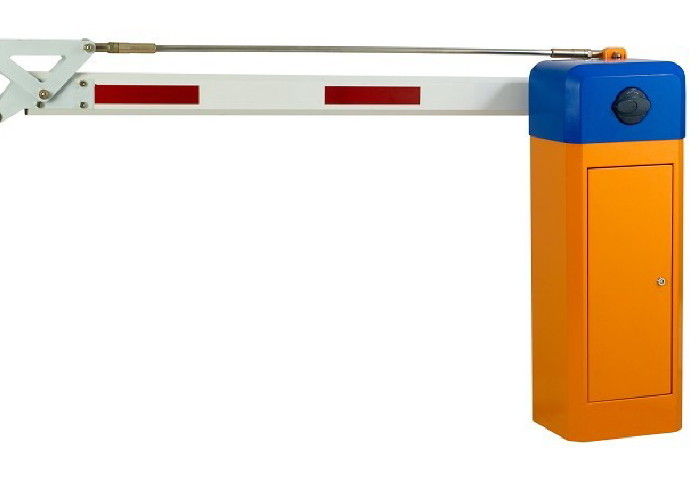

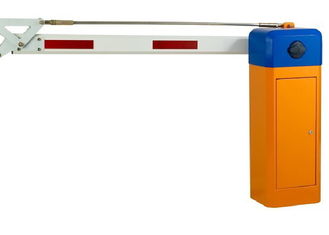

: Large Image : Magnetic Straight Boom Barrier Gates With Aluminum Alloy Rail / Remote Control

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Integer
Certification:	CE, ISO, SGS
Model Number:	IBG-102

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	Carton(1 unit): 1020375467mm
Delivery Time:	5~15
Payment Terms:	T/T
Supply Ability:	3000units per month

Detailed Product Description

Model:	IBG-102	Color:	Orange
Weight:	60kg	Relative Humidity:	≤90%
Steel Thickness:	2.5mm	Voltage:	AC 220v, 110v
Material:	Cold-rolled Steel Plate	Dimension:	1020375467mm

Magnetic Straight Boom Barrier Gates With Aluminum Alloy Rail / Remote Control

IBG-102 traffic parking barrier gate is made of 2.5mm cold rolled plate, single phase asynchronous motor.
It is not only beautiful in design, but also effective in performance, outstanding among similar
products for competitive price and reliable quality.

Competitive Advantage:

1. use simple driving actuating mechanism to reduce mechanical failer and maintenance free.
2. equiped with high- sensibility magnet sensing limit control system
3. able to work with infrared photocells or vehicle detector , preventing vehicle from damaging
4. Special balance device to keep the lever opening vertically and closing horizontally.
5. convenient to control by remove control, manual switch, also open by handle when power off
6. the lever is made of high strength aluminum alloy covered with shining film, good performance of
prompting
7.adopt thermal protection functions to turn off the motor automatically when temperature is higher
than 135℃
8. power coating with customerized color
9. able to work with straight/articulated/ fence lever

INTEGER can also provide the following products:

IC/RF ID/magnetic cards and card reader, automatic card dispenser, loop detector, card collector, tickets transport machine, micro printer, barrier gate, parking guidance system.

Parameter:

Voltage	AC 220V
Frequency	50HZ
Power	100W-150W
Boom Length	≤ 6m
Switching speed	1.5-6S
Working temperature	-40-+75°C
Relative humidity	≤90%,non-condensing
Shell Material	A3 steel
Shell thickness	2.0mm
Surface handle	Import paint
Open method	Read card, remote control ,manual button
Remote control distance	≤30M
Weight of barrier	60-65KG
Cabinet dimension	depends on the design (SEWO-X660/SEWO-DZ260/SEWO-DZ260C/SEWO-DZ260Z/SEWO-260GL/SEWO-260)
Communication Distance	≤1200M
Communication Connection	RS485 Communication
Boom Type	straight/grid/folding
Application	parking lot in residential communities, enterprises and institutions, hotels,commercial buildings, government organizations, logistics company, hospitals, villages, shopping markets
