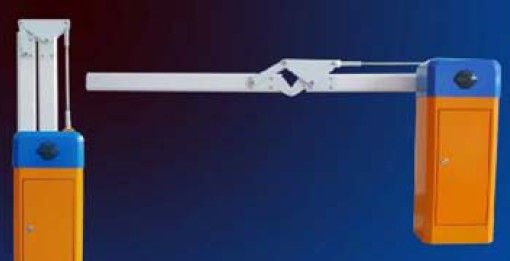

Vehicle Safety Traffic Boom Barrier Gate Automatic Car Park Barrier System

Large Image : Vehicle Safety Traffic Boom Barrier Gate Automatic Car Park Barrier System

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Integer
Certification:	CE, ISO, SGS
Model Number:	IBG-104

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	Carton(1 unit): 1020375467mm
Delivery Time:	5~15
Payment Terms:	T/T
Supply Ability:	3000units per month

Detailed Product Description

Model:	IBG-101	Color:	Optional
Weight:	60kg	Power Frequency:	50/60Hz
Steel Thickness:	2.5mm	Voltage:	AC 220v, 110v
Material:	Cold-rolled Steel Plate	Dimension:	1020375467mm

Vehicle Safety Traffic Boom Barrier Gate Automatic Car Park Barrier System

IBG-1041used to control vehicles at customs, military bases, important government, departments, airports, jails, nuclear power stations, docks, logistic centers, gardens, public parking place etc. Our products has a solid and endurable structure

Competitive Advantage:

1. use simple driving actuating mechanism to reduce mechanical failer and maintenance free.
2. equiped with high- sensibility magnet sensing limit control system
3. able to work with infrared photocells or vehicle detector , preventing vehicle from damaging
4. Special balance device to keep the lever opening vertically and closing horizontally.
5. convenient to control by remove control, manual switch, also open by handle when power off
6. the lever is made of high strength aluminum alloy covered with shining film, good performance of
prompting
7.adopt thermal protection functions to turn off the motor automatically when temperature is higher
than 135℃
8. power coating with customerized color
9. able to work with straight/articulated/ fence lever

INTEGER can also provide the following products:

IC/RF ID/magnetic cards and card reader, automatic card dispenser, loop detector, card collector, tickets transport machine, micro printer, barrier gate, parking guidance system.

Technical data:

IBG-101
Arm Type	Straight Arm
Arm material	aluminum alloy
Arm length	≤ 6.0m
Rail up or down time	1.8s-6s optional
Motor power	AC220/50Hz
Frequency	50~60Hz
Protection class	IP65
Operating temperature	-45 to 80
Operating humidity	≤ 90% non-condensing
Dimensions	345x295x1000
Material	2.5mm cold-rolled steel plate with waterproof and rustproof coating
Communication Interface	Standard RS485
Communication Range	800-1200m
Functions	remote control
	Anti-bumping function to protect cars and pedestrain
	Solid and endurable structure, strong bearing capacity
	Manual operating mode is provided
	In case of electric failure or trouble, it can manually operate the movable barrier to return to the horizontal position
