Product Details:
Payment & Shipping Terms:
|
| Model: | IBG-108 | Color: | Optional |
|---|---|---|---|
| Weight: | 60kg | Power Frequency: | 50/60Hz |
| Steel Thickness: | 2.5mm | Voltage: | AC 220v, 110v |
| Material: | Cold-rolled Steel Plate | Dimension: | 1020*375*467mm |
Straight Boom Driveway Barrier Gate For Parking And Vehicle Access Control
Barrier gate, also named as intelligent/electric vehicle road blocker, is a widely used machine in gate access control application.
Boom barrier gate is very important for an automatic car parking management system and other traffic project; this equipment widely uses for block the road, manage the access of the gate for all vehicles such as car, truck, bus even motorbike. Everyday, you can easy find barrier gate at everywhere, airport, highway, commercial building, shopping mall, factory, hospital, and so on.
In addition, all parking system integration and/or installation company can more easily understand the important value of barrier gate for parking lots project. So how to choose a good quality and high cost-effective barrier gate is an important lesson for their manager and engineers.
Our barrier gate is one of your option, we are professional hardware provider of parking management system and security access control system.

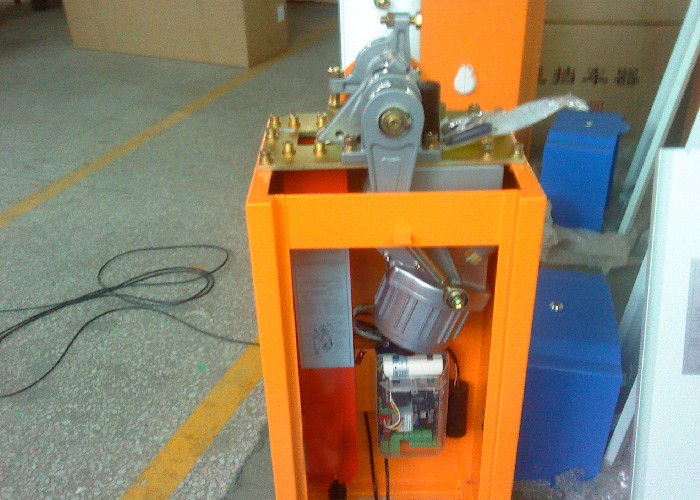

IBG-108 is our typical mode of barrier gate for parking system application. This mode with strong structure, the body made by 2mmcold-rolled plate heavy duty case with IP54 protection, surface with outdoor type good quality thermos-stability spray painting. The arm support straight, fold, and fence bar for suit different application, user can open/close arm by remote control, push key and manual handle. Here introduce more details as below:
Competitive Advantage:
1. Open the barrier gate by mo tor wheel when power o ff and automatic locking when power on
2. Balanced boom running wit h a motor transmission of cranks and shafts
3. Remote control to operate the barrier gate
4. Auto-reverse when the boom meets obstruction
5. Infrared photocells connector is available
6. Loop detector co nnector is available
7. Well-integrated with car parking syst em equipments, with wire control (push button)
8. Connector for traffic light
9. Offering dry contact signal for car parking system (COM, NC, NO)
10. Auto-delay when closing (adjustable)
INTEGER can also provide the following products:
IC/RF ID/magnetic cards and card reader, automatic card dispenser, loop detector, card collector, tickets transport machine, micro printer, barrier gate, parking guidance system.
Technical data:
|
IBG-108 |
|
|
Arm Type |

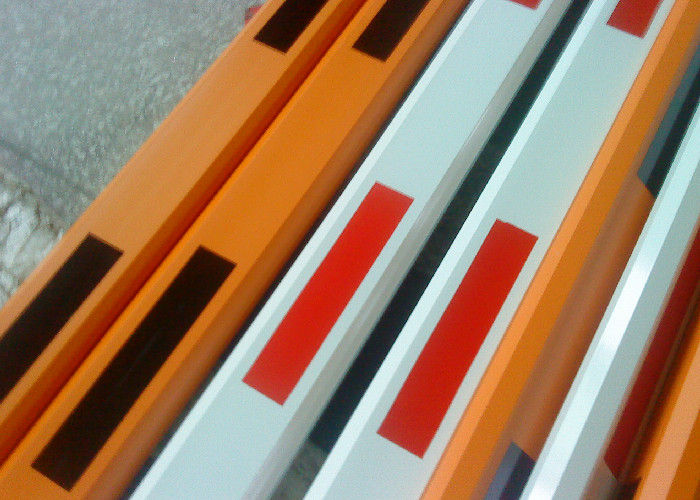

Straight Arm,4m Folding boom |
|
Arm material |
aluminum alloy |
|
Arm length |
≤ 6.0m |
|
Rail up or down time |
1.5s-6s optional |
|
Motor power |
AC220/50Hz |
|
Frequency |
50~60Hz |
|
Protection class |
IP65 |
|
Operating temperature |
-45 to 80 |
|
Operating humidity |
≤ 90% non-condensing |
|
Dimensions |
345x295x1000 |
|
Material |
2.5mm cold-rolled steel plate with waterproof and rustproof coating |
|
Communication Interface |
Standard RS485 |
|
Communication Range |
800-1200m |
|
Functions |
remote control |
|
Anti-bumping function to protect cars and pedestrain |
|
|
Solid and endurable structure, strong bearing capacity |
|
|
Manual operating mode is provided |
|
|
In case of electric failure or trouble, it can manually operate the movable barrier to return to |
|
