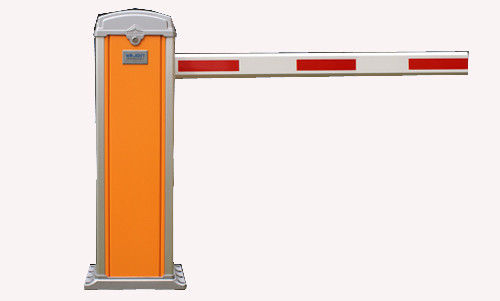

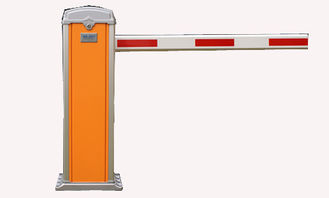

Single Pole Gate Road Boom Barrier Gate System In Driveway / Parking Lot

Large Image : Single Pole Gate Road Boom Barrier Gate System In Driveway / Parking Lot

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Integer
Certification:	CE, ISO, SGS
Model Number:	IBG-601

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	Carton(1 unit): 1020375467mm
Delivery Time:	5~15
Payment Terms:	T/T
Supply Ability:	3000units per month

Detailed Product Description

Model:	IBG-201	Color:	Optional
Weight:	60kg	Power Frequency:	50/60Hz
Steel Thickness:	2.5mm	Voltage:	AC 220v, 110v
Material:	Cold-rolled Steel Plate	Dimension:	1020375467mm

Single Pole Gate Road Boom Barrier Gate System In Driveway / Parking Lot

IBG-103 has wide application in road,parking lot,school ,hospital,supermarket,living area,ect.
The machine is beautiful in design and excellent in performance.The barrier casing are powder
coated by high class paint with uvioresistant function and the barrier boom is made of high strength
aluminum alloy tube covered with light-reflecting material to warn the driver.It is outstanding among
similar products for its reasonable price and high quality.

Specifications

water-proof and rust-proof coating.
2.5mm cold-rolled steel plate
Anti-bumping function
aluminum alloy arm

Application :

Used to control vehicles at customs, military bases, important government, departments, airports, jails, nuclear power stations, docks, logistic centers, gardens, public parking place etc. Our products has a solid and endurable structure

Technical data:

IBG-201
Arm Type	Straight Arm
Arm material	aluminum alloy
Arm length	≤ 6.0m
Rail up or down time	1.8s-6s optional
Motor power	AC220/50Hz
Frequency	50~60Hz
Protection class	IP65
Operating temperature	-45 to 80
Operating humidity	≤ 90% non-condensing
Dimensions	345x295x1000
Material	2.5mm cold-rolled steel plate with waterproof and rustproof coating
Communication Interface	Standard RS485
Communication Range	800-1200m
Functions	remote control
	Anti-bumping function to protect cars and pedestrain
	Solid and endurable structure, strong bearing capacity
	Manual operating mode is provided
	In case of electric failure or trouble, it can manually operate the movable barrier to return to the horizontal position
