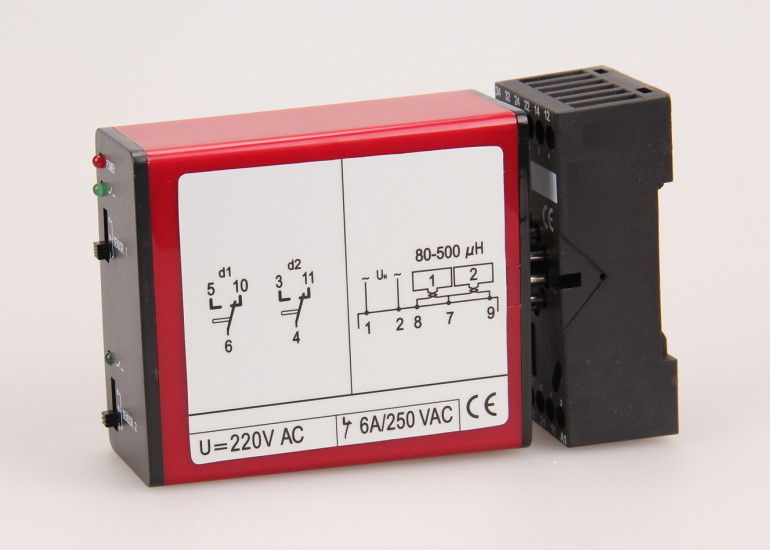

Barrier Gate Magnetic Loop Detector Car Detection Sensor With Dual Channel

: Large Image : Barrier Gate Magnetic Loop Detector Car Detection Sensor With Dual Channel

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Integer
Certification:	ISO 9001:2008,CE,Rohs
Model Number:	IVD410

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiation
Packaging Details:	Export Wooden Case
Delivery Time:	1 days after get payment if less 100 unit
Payment Terms:	T/T
Supply Ability:	1,0000 set/month

Detailed Product Description

Material:	ABS	Weight:	300g
Dimension:	78x40x108 Mm	Power Supply:	AC220V, 110V DC 24V, 12V
Frequency Range:	20 KHz To 170 KHz	Sensitivity:	3 Grade
Loop:	Double Loop	Reaction Time:	100ms
Installation:	DIN Rail	Connection:	11-Pin Socket

Barrier Gate Magnetic Loop Detector Car Detection Sensor With Dual Channel

Specifications:

Single channel or double channel loop detector(double channel can detect direction)

1. Easy using and installation

2. Compatible with parking system(barrier gate and ticket box)

3. Two-way or four-way output relays

4. High temperature stability

5. Strong anti-jamming ability and stability

Product Description:

1. Loop detectors are used wherever vehicles have to be detected. Like monitoring and safe guarding access ways for counting vehicles. The output signal can be used for controlling door and gate drive mechanisms, road barriers, controlling traffic light systems in car parks or activating card dispensers in car parks.

2. The Product is a channel inductive loop detectors. The principle is based on a change in the inductance within the loop which is caused by the metallic components of passing vehicles. The changes are picked up and evaluated by a microprocessor. Ease of use due to the automatic calibration when the operating voltage is applied.

Specifications:

The Product has two-way output relays

One is unlimited output when loop is temporarily covered, while the other is multi-mode that can be set by users

Operation Voltage: AC 220V±10%

Power consumption: <5W

Output: relay output

Frequency range: 20kHz to 170kHz (4 grades adjustable)

Reaction time: 100ms

Sensitivity adjusting: 3 grades

Loop inductance:

Ideal: 100uH to 300uH (include connecting wiring)

Maximum: 50uH to 1000uH (include connecting wiring)
