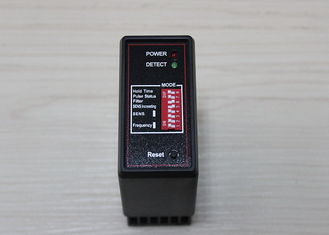

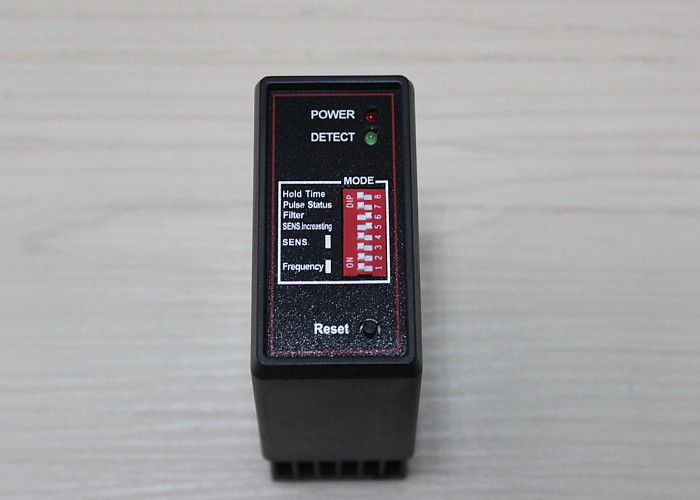

Black ABS Magnetic Loop Detector Replacement Of Nortech Loop Detector

: Large Image : Black ABS Magnetic Loop Detector Replacement Of Nortech Loop Detector

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Integer
Certification:	ISO 9001:2008,CE,Rohs
Model Number:	PD-132

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	USD0~30 per pcs
Packaging Details:	78x40x108 mm (L x W x H)
Delivery Time:	2~3 working days
Payment Terms:	T/T
Supply Ability:	10000pcs per month

Detailed Product Description

Material:	ABS	Color:	Black
Frequency Range::	20 KHz To 170 KHz	Dimension:	78x40x108 Mm
Gross Weight:	340g	Connection:	11-pin Socket
Sensitivity:	4 Grade	Power Supply:	AC 220/110v, DC 24/12v

Black ABS Magnetic Loop Detector Replacement Of Nortech Loop Detector

Loop detector is composed of two parts: Ground induction coil and processor. The processor is used to

check the vehicles passing by the ground induction coil, collecting induction signals and export corresponding

pulse signals. The quantity of the passing vehicles may be judged by different output ports of thepulse signals

through setting up different induction sensitivity and working frequency for preventing against mutual interference.

Feature:

High temperature stability, used in kinds of environment
Enviorment drifting compensate automatically
With adjustable mulltievel sensitivity
User can choose working frequency according to real need
With two relay output
Small size take up little space

Parameters:

Power: 2.5w
Power supply: 220V
Frequency range: 20-2000Hz
Sensitivity: 4 levels adjustable
Response time: 100ms
Ambient compensation Auto floating compensation
Coil induction: 80-300Uh(excluding connection wire)
Storage condition: -40c ~85c

Working condition: 0c~50c.
The relative humidity < 90%
Dimension: 78x40x108 mm
