| Material: | ABS | Color: | Blue |
|---|---|---|---|
| Reaction Time: | 10ms | Sensitivity: | 4 Grade |
| Dimension: | 79×22.5×90mm | Gross Weight: | 250g |
| Power Supply: | DC 12-24v | Work Frequency: | 20kHz ~ 130kHz |
| Automatic Calibration: | 1s - 2s | Output Relay: | 120V/3A AC |

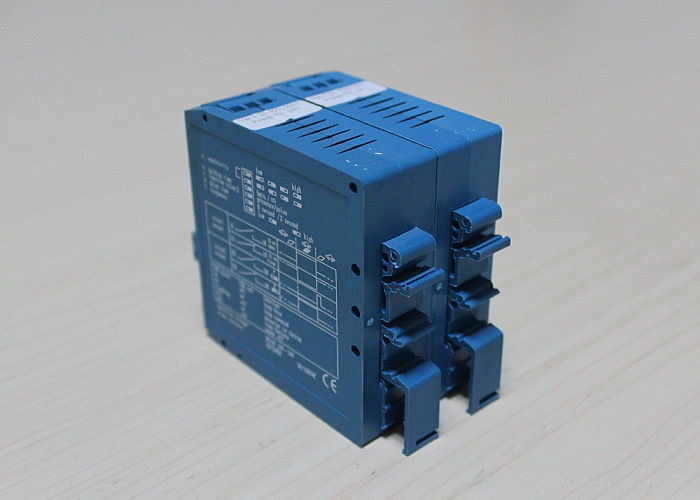

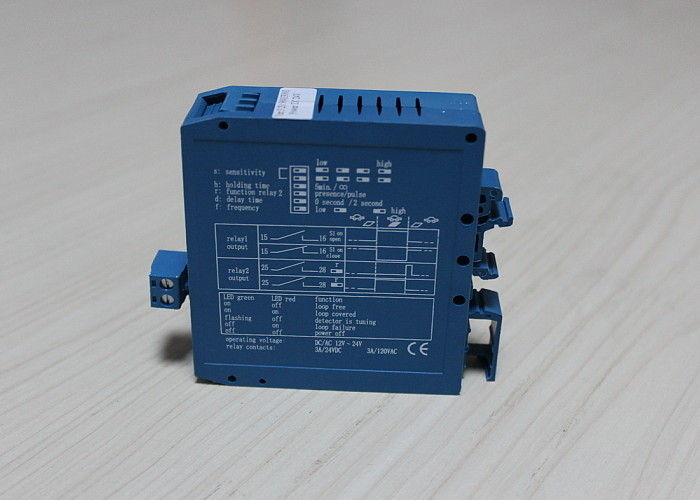

Blue Lightweight Vehicle Detector Loop Used In Car Parking Toll System
Product Description
IVD-M1H is a magnetic single loop detector use electricmagnetic induction technology to probe whether the vehicle is passed or stop the loop position. It have four sensitivity grade can be select to adjust different situation.Ease of use thanks to automatic calibration when the operating voltage is applied.
Key words: Loop detector, Vechicle loop detector, Parking management loop detector, car loop detector,
relay output loop detector, access control loop detector.
Features
1. High temperature stability, used in kinds of environment,
2. Environment drifting compensate automatically,
3.With function of sensing loop malfunction automatically (disconnection or cutting-out),
4. With adjustable multilevel sensitivity
5. User can choose working frequency according to real need,
6. With two relay output,
7. Small size take up little space.
Technicial data
1) Power Supply : DC 12V
2) Power Consumption : 3W maximum
3) Output Relay : 120V/3A AC
4) Work Temperature : -20oC ~ +70oC
5) Loop Inductance Range : 50H ~ 800H ( ideal 100H ~ 300H )
6) Work Frequency : 20kHz ~ 130kHz
7) Sensitivity : 4 levels adjustable
8) Self-calibrating : 1s to 2s
9) Dimension : 78x40x108 mm (L x W x H)
Green Red
Off OFF---------no power
Flash Flash----------self-detection
On Off----------vehicle entre into the work condition
On On----------vehicle entre into the work condition
Off On-----------can not detect the loops
Detector position and installation
Install the detector in a weatherproof housing.
The detector should be as close to the sensing loop as possible.
The detector should always be installed away from strong magnetic fields.
Avoid running high voltage wires near the loop detectors.
Do not install the detector on vibrating objects.
When the control box is installed within 10 metres of the loop, normal wires can be used to
connect the control box to the loop. More than 10 metres requires the use of a 2 core shielded
cable. Do not exceed 30 metres distance between control box and loop.
