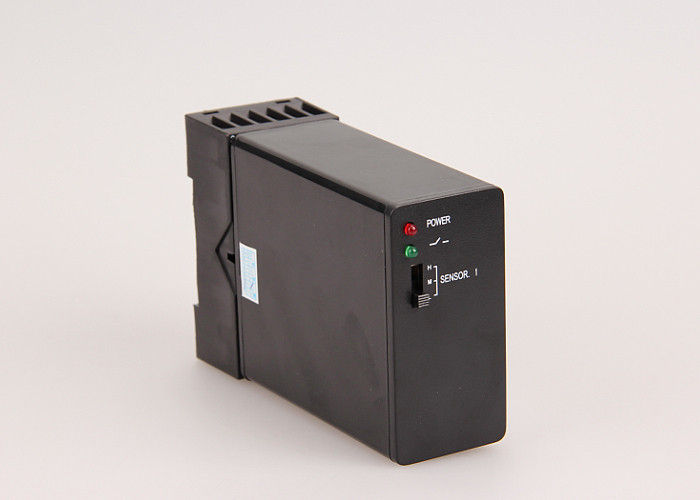

Industrial DC24v Vehicle Magnetic Loop Detector Sensor For Boom Barrier Gate

: Large Image : Industrial DC24v Vehicle Magnetic Loop Detector Sensor For Boom Barrier Gate

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Integer
Certification:	ISO 9001:2008,CE,Rohs
Model Number:	IVD-118

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	USD0~30 per pcs
Packaging Details:	78x40x108 mm (L x W x H)
Delivery Time:	2~3 working days
Payment Terms:	T/T
Supply Ability:	10000pcs per month

Detailed Product Description

Material:	ABS	Color:	Black
Reaction Time:	100ms	Frequency Range::	20 KHz To 170 KHz
Dimension:	78x40x108 Mm	Gross Weight:	340g
Sensitivity:	4 Grade	Power Consumption:	5W

Industrial DC24v Vehicle Magnetic Loop Detector Sensor For Boom Barrier Gate

Description:

IVD-118 single loop detectors provide customers with a safety detector that can prevent accidents which occur when power outages cause vehicle access control systems to reset their logic boards. They incorporate an advanced micro-controller that combines a powerful digital computer and the latest and most advanced inductive vehicle loop technology to give high-test reliability and accuracy when measuring, counting or detecting vehicles when passing through any residential or commercial gate operator.

The Product is a channel inductive loop detectors. The principle is based on a change in the inductance within the loop which is caused by the metallic components of passing vehicles. The changes are picked up and evaluated by a microprocessor. Ease of use due to the automatic calibration when the operating voltage is applied.

Feature:

With two relay output

High temperature stability
With adjustable mulltievel sensitivity

Enviorment drifting compensate automatically
User can choose working frequency according to real need

Application:

Traffic light

Gate Opener

Vehicle monitor

Highway toll system

Parking lots toll system

Specifications:

Operating voltage:	220V AC(Default, or 110VAC)
Power Consumption:	<5W
Output :	Relay Output
Frequency range:	20 KHz to 170 KHz (4 grades adjustable)
Reaction time:	10ms
Signal holding time:	Unlimited / limited 10 minutes when loop is permanently covered
Sensitivity:	3 grades
Loop inductance:	Ideal 100μH to 300μH (include connecting wiring)
	Max 50μH to 1000μH (include connecting wiring)
Loop Wiring:	Max. 100m, twisted at least 20 times per meter, total resistance <10 Ohm
Auto correcting time:	1s to 2s
Operating temp:	-30℃ to +70℃
Storage temp:	- 40℃ to + 85℃
Relative humidity:	≤ 95%
Dimensions:	78×40×108 mm (L×W×H) (include socket )
Net Weight:	340g(include socket)
Dimensions	78x40x108 mm
