Product Details:
Payment & Shipping Terms:
|
| Material: | ABS | Color: | Red |
|---|---|---|---|
| Reaction Time: | 100ms | Dimension: | 78x40x108 Mm |
| Gross Weight: | 340g | Connection: | 11 Pin Socket |
| Sensitivity: | 3 Grade | Channel: | Single |

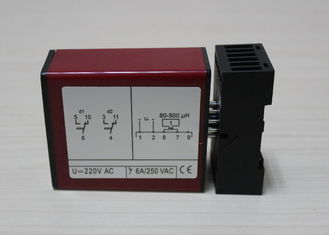

Inductive Magnetic Single Loop Detector Lightweight 78x40x108 Mm
Introduction:
IVD-110 loop detector with 3 sensitivity grade is composed of two parts: Ground induction coil and processor. The processor is used to check the vehicles passing by the ground induction coil, collecting induction signals and export corresponding pulse signals. The quantity of the passing vehicles may be judged by different output ports of the pulse signals through setting up different induction sensitivity and working frequency for preventing against mutual interference.
Loop detectors are used wherever vehicles have to be detected. Like monitoring and safe
guarding access ways to counting vehicles. The output signal can be used for controlling door
and gate drive mechanisms, operating barriers, controlling traffic light systems in car parks or
activating card dispensers in car parks
Features
1. Adapt to various bad environment;
2. Lightning-proof design
3. High temperature stability
4. Adjustable speed of detection and frequent of initialization
5. Red and white optional
6. Three kinds of relay output optional
Applications
1. Traffic light
2. Vehicle monitor
3. Highway toll system
4. Parking lots toll system
Technical Parameters
|
Model |
IVD-110 |
|
Power Supply |
AC 220V±10%/50Hz-60 Hz, AC110V±10%/ 50Hz-60 Hz, DC12V±5% |
|
Power Consumption |
3W (peak) |
|
Loop Inductance |
80—500μH |
|
Frequency |
50 KHz—250 KHz |
|
Sensitivity |
Three-level adjustable |
|
Output |
two relay output |
|
Length of Lead-in Cable |
maximum 5 meters, each meter should be stranded at least 20 times |
|
Ambient Compensation |
automatic drift compensation |
|
Operating Temperature |
-5°C—70°C/ 0—90%RH(No Condense) |
|
Storage Temperature |
-20°C—80°C/ 0—90%RH(No Condense) |
|
Weight |
Approx. 300g |
