| Material: | ABS | Color: | Black |
|---|---|---|---|
| Reaction Time: | 10ms | Sensitivity: | Adjustable |
| Dimension: | 27*21*37 Mm | Gross Weight: | 20g |

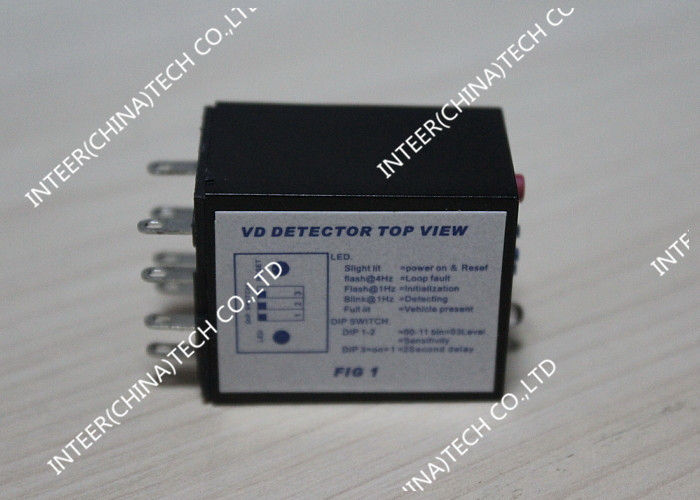

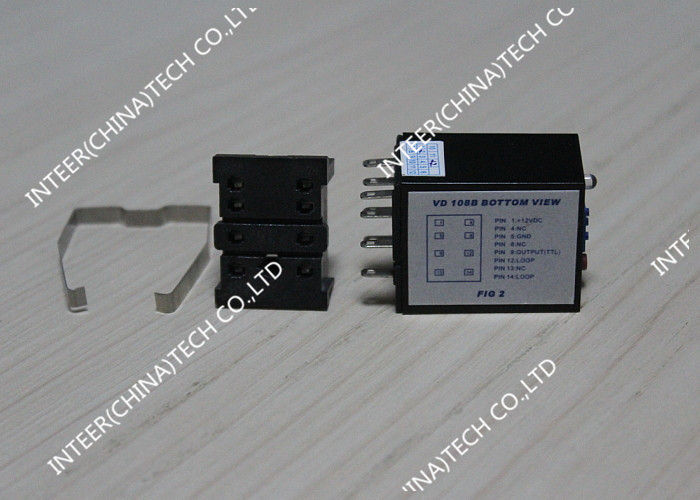

Micro Magnetic Loop Detector For Parking System Entry Control Board
Introduction:
Micro Magnetic Loop Detector VD108B is the smallest vehicle loop detector, is used for wherever vehicles have to detected.Special design for all controll board of parking system. Easy install and opreate. The sensitivity is adjust by the number of loop circle, can't change by DIP setting.
Application:
Parking Management System
Barrier Gate Control Board
Product Features:
1. Adapt to various bad environment;
2. High temperature stability
3. Adjustable speed of detection and frequent of initialization
4. Relay output
5. With function of auto compensation when environment changed
Specifications:
|
Model |
VD108B |
|
Power Supply |
AC 220V±10%/50Hz-60 Hz, AC110V±10%/ 50Hz-60 Hz, DC12V±5% |
|
Power Consumption |
3W (peak) |
|
Loop Inductance |
80—500μH |
|
Frequency |
50 KHz—250 KHz |
|
Output |
relay output |
|
Length of Lead-in Cable |
maximum 5 meters, each meter should be stranded at least 20 times |
|
Ambient Compensation |
automatic drift compensation |
|
Operating Temperature |
-5°C—70°C/ 0—90%RH(No Condense) |
|
Storage Temperature |
-20°C—80°C/ 0—90%RH(No Condense) |
|
Weight |
Approx. 0.02kg |
