Product Details:
Payment & Shipping Terms:
|
| Material: | ABS | Color: | Red |
|---|---|---|---|
| Frequency: | 20 KHz To 170 KHz | Dimension: | 78x40x108 Mm |
| Gross Weight: | 340g | Sensitivity: | 3 Grade |

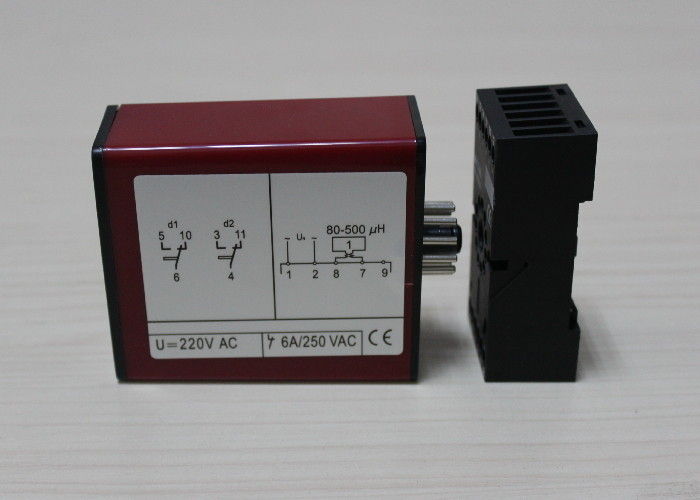

Single Channel Mangnetic Loop Detector 3 Grade Sensitivity Inductive Loop Vehicle Detector
Description:
IVD-110 connects one inductive loop (single channel), it used for wherever vehicles have to detected.
For example for monitoring and safe-guarding accessways or for counting vehicles at entry and exit of community and parking lot.
The output singnal can be used for controlling door and barrier gate drive mechanisms, operation barriers, controlling traffic light system or activaticing card dispensers in parking management system.
Loop detector is composed of two parts: Ground induction coil and processor. The processor is used to
check the vehicles passing by the ground induction coil, collecting induction signals and export corresponding
pulse signals. The quantity of the passing vehicles may be judged by different output ports of thepulse signals
through setting up different induction sensitivity and working frequency for preventing against mutual interference.
Feature:
Small size take up little space
With adjustable mulltievel sensitivity
Enviorment drifting compensate automatically
High temperature stability, used in kinds of environment
User can choose working frequency according to real need
Application:
Parking system
High Way toll system
Traffic Light Control System

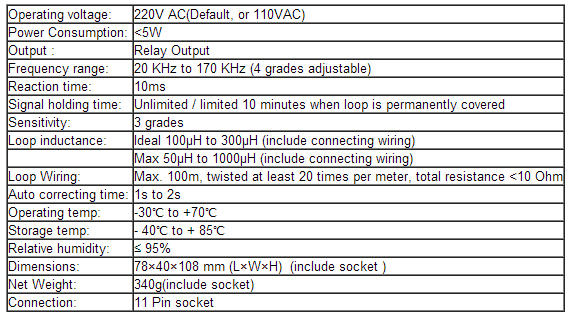

Specifications:
