| Material: | ABS | Color: | Black |
|---|---|---|---|
| Reaction Time: | 10ms | Sensitivity: | Adjustable By Coil |
| Dimension: | 27*21*37 Mm | Gross Weight: | 20g |
| Working Condition: | -5~70 Degree | Connection: | 8 Pin Socket |

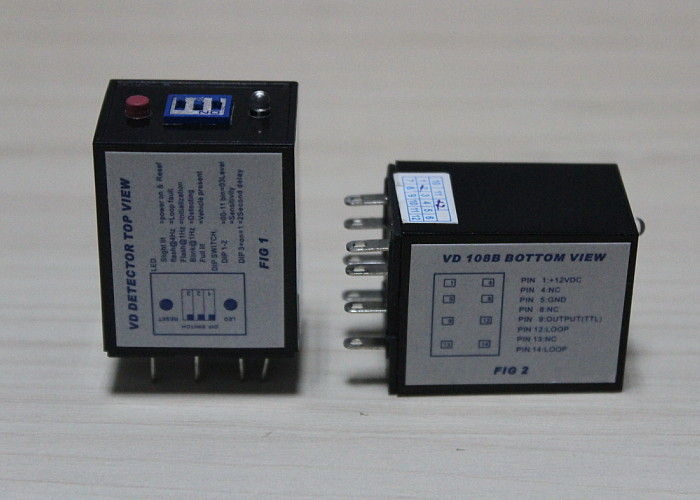

ABS 8 Pin Magnetic Vehicle Loop Sensor Car Loop Detector Black
Introduction:

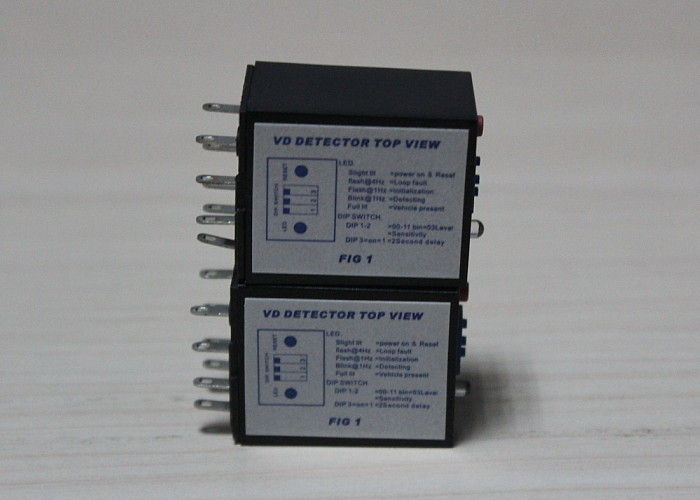

VD108B Micro Magnetic Loop Detector is the smallest vehicle loop detector, used for vehicle
access control areas to keep the barrier gate opening until the vehicle leaves the covering area.
Special design for all controll board of parking system. Easy install and opreate. The sensitivity
is adjust by the number of loop coil, can't change by DIP setting.
Product Features:
1. Relay output
2. High temperature stability
3. Adapt to various bad environment
4. Adjustable speed of detection and frequent of initialization
5. With function of auto compensation when environment changed
Applications:
1. Traffic light
2. Vehicle monitor
3. Highway toll system
4. Parking lots toll system
5. Vehicle channel
Technical Parameters:
|
Model |
VD108B |
|
Power Supply |
AC 220V±10%/50Hz-60 Hz, AC110V±10%/ 50Hz-60 Hz, DC12V±5% |
|
Power Consumption |
3W (peak) |
|
Loop Inductance |
80—500μH |
|
Frequency |
50 KHz—250 KHz |
|
Sensitivity |
Three-level adjustable |
|
Output |
relay output |
|
Length of Lead-in Cable |
maximum 5 meters, each meter should be stranded at least 20 times |
|
Ambient Compensation |
automatic drift compensation |
|
Operating Temperature |
-5°C—70°C/ 0—90%RH(No Condense) |
|
Storage Temperature |
-20°C—80°C/ 0—90%RH(No Condense) |
|
Weight |
Approx. 0.02kg |
