| Material: | ABS | Color: | Black |
|---|---|---|---|
| Reaction Time: | 10ms | Sensitivity: | Adjustable |
| Dimension: | 100*70*118 Mm | Gross Weight: | 460g |

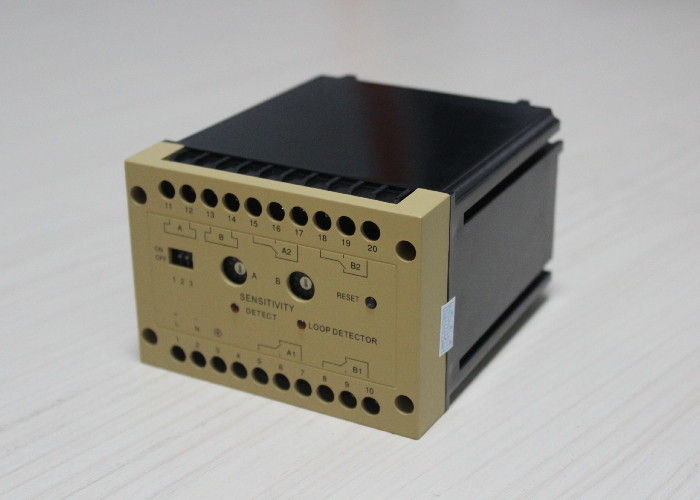

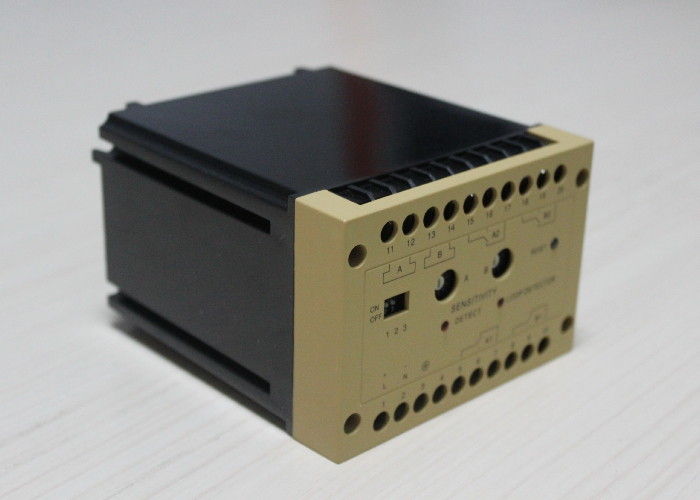

Double Long Vehicle Magnetic Loop Detector Adjustable Sensitivity
Description:
IVD-600 industrial magnetic double loop detectors are used wherever vehicles have to be detected.
Like monitoring and safe guarding access ways to counting vehicles. The output signal can be
used for controlling door and gate drive mechanisms, operating barriers, controlling traffic light
systems in car parks or activating card dispensers in car parks.
Installing the loop
After determining the loop geometry, a groove (5-8 mm wide, 30-50 mm deep) must be cut in
the floor for installing the loop. We recommend cutting an inclined groove (45° angle) at the
corners of the loop. Routing the loop wire along this incline will protect it from excessive wear
at the corners. The groove must then be cleaned avoiding any kind of moisture. Run the loop
wire as tight as possible along the very bottom of the groove.
You can use commercial copper strand (flexible, insulated, 1.5 mm)
As loop wire.
Prior to sealing up the groove, the loop inductance should be checked using a measuring
device, and modified as required (optimum value80-300 µH). Then run a nylon cord along
the loop and seal up the groove. Suitable sealing compounds are for example bitumen or
artificial resin. Once the sealing compound has set, an earth leakage measurement must
be carried out. The loop detector can then be connected to the power supply.
Caution! When sealing up the groove, ensure that the temperature of the sealing compound
(e.g. hot bitumen) does not exceed the maximum admissible temperature of the loop
nsulation, as this might cause an earth fault. Use a heat-resistant insulated wire for such cases.
Application:
| Parking Guidance System | Parking Managment System |
| Highway Tolling System | Garage or Gate Opener |
Product Features:
10 Grade Adjustable Sensivity
0~5s Signal Delay Transfer
Lightning-proof design
High temperature stability
Three kinds of relay output optional
Adjustable speed of detection and frequent of initialization
Specifications:
﹡Type:ILD-600(double channel)
﹡Operating temp.: -30℃ ～ +75℃
﹡Storage temp.: -40℃ ～ +85℃
﹡Relative humidity: ≤95%
﹡Shell: PC + ABS engineering plastics
﹡Installation: DIN rail
﹡Dimensions: 110×60×100 mm (L×W×H)
﹡Net Weight: 400g
﹡Operating voltages: AC220V±10%
﹡Power consumption:＜5W
﹡Relay output:DC24V /3A
﹡Frequency range:20kHz ～ 170kHz
﹡Reaction time:20 ms
﹡Sensitivity:10 grades adjustable
﹡Loop inductance: Ideal 100µH～300µH Max 50µH～1000µH
﹡Loop conn. Wiring: Max 100m, twisted at least 20 times per meter, total resistance <10 Ohm
﹡Automatic calibration time:2s～5s
