| Material: | ABS | Reaction Time: | 10ms |
|---|---|---|---|
| Frequency Range:: | 20 KHz To 170 KHz | Dimension: | 78x40x108 Mm |
| Gross Weight: | Approx. 340g | Operating Temperature: | -20°C To +65°C |
| Storage Temperature: | -40°C To +85°C | Input Voltage: | AC110/220v DC12/24v |

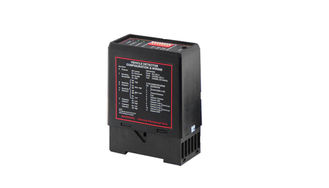

20 Khz To 170 Khz Double Loop Vehicle Detector For Detector The Direction And Count
Description:
PD232 vehicle double loop detector usually use for area parking guidance system. it provide customers with a safety detector that can prevent accidents which occur when power outages cause vehicle access control systems to reset their logic boards. They incorporate an advanced micro-controller that combines a powerful digital computer and the latest and most advanced inductive vehicle loop technology to give high-test reliability and accuracy when measuring, counting or detecting vehicles when passing through any residential or commercial gate operator.
Application:
Traffic light
Vehicle monitor
Airport toll system
Highway toll system
Parking lots toll system
Specifications:
Tuning: Fully automatic
Self-tuning range: 50 to 1000μH
Sensitivity : 4 step switch selectable
Frequency: 4 step switch selectable
Modes: Output relays operate in the Presence ( fail-secure ),Pulse or Direction logic modes
Presence Time Switch selectable:Limited presence /Permanent presence
Pulse Output Duration 500 millisecond options
Response Times 20 milliseconds
Visual Indication 1 x Power LED - Red
2 x Channel Status LED - Green
Relay Outputs 2 Relays rated - 5A @ 230 VAC
Reset Reset by push button on front of enclosure
Input Power: 12 - 24V AC/DC ± 10% 110V AC ± 10% 230V AC ± 10%
Operating Temperature: -40°C to +85°C

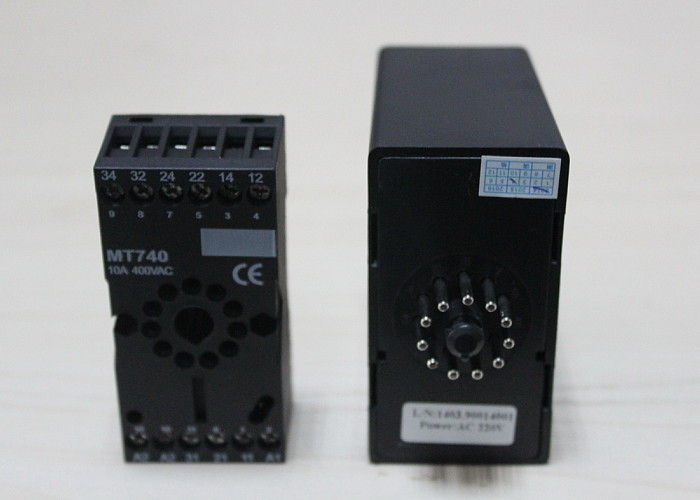

Mounting Position: Shelf or DIN rail mounting
