| Material: | ABS | Color: | Black And Earth Yellow |
|---|---|---|---|
| Reaction Time: | 20ms | Frequency Range:: | 20 KHz To 170 KHz |
| Dimension: | 100*70*118 Mm | Gross Weight: | 460g |
| Sensitivity: | 10 Grade | Installation: | DIN Rail |

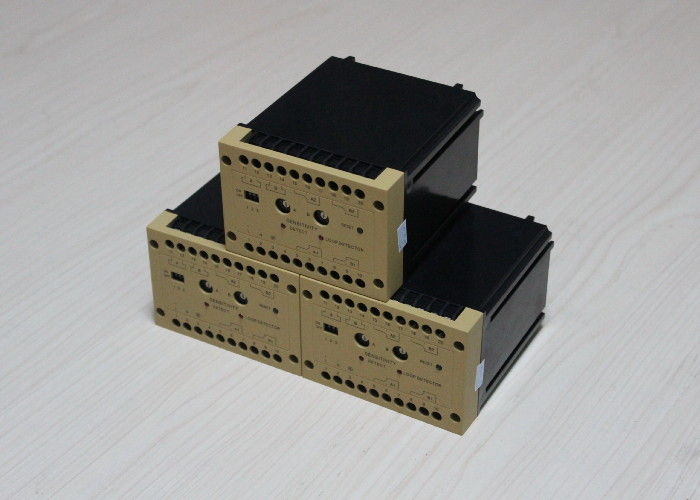

Ten Grade Sensitivity Dual Loop Vehicle Detector Automotive Single Delay Setting
Introduction
IVD-600 is used for vehicles detecting for example for monitoring and safe-guarding access ways or for counting vehicles. The output signal can be used for controlling door drive mechanisms, operating barriers, activating card dispensers etc.
The principle is based on a change in the inductance within the loop which is caused by the metallic components of passing vhicles. The changes are picked up and evaluated by a microprocessor. Ease of use due to the automatic calibration when the operating voltage is applied.
Technical parameters
|
Operating voltage |
220V AC(Default, or 110VAC) |
|
Power Consumption |
<5W |
|
Output |
Relay Output |
|
Frequency range |
20 KHz to 170 KHz (4 grades adjustable) |
|
Reaction time |
10ms |
|
Signal holding time |
Unlimited / limited 10 minutes when loop is permanently covered |
|
Sensitivity |
10grades |
|
Loop inductance |
Ideal 100μH to 300μH (include connecting wiring) |
|
|
Max 50μH to 1000μH (include connecting wiring) |
|
Loop Wiring |
Max. 100m, twisted at least 20 times per meter, total resistance <10 Ohm |
|
Auto correcting time |
1s to 2s |
|
Operating temp |
-30℃ to +70℃ |
|
Storage temp |
- 40℃ to + 85℃ |
|
Relative humidity |
≤ 95% |
|
Dimensions |
100*70*118 mm |
|
Net Weight |
450g |
|
Material |
ABS engineering plastics |
Principle
It is based on a change in the inductance within the loop which is caused by the metallic components of passing vehicles. The changes are picked up and evaluated by a microprocessor.
