Product Details:
Payment & Shipping Terms:
|
| Material: | ABS | Weight: | 300g |
|---|---|---|---|
| Dimension: | 78x40x108 Mm | Power Supply: | AC220V, 110V DC 24V, 12V |
| Frequency Range: | 20 KHz To 170 KHz | Channel: | Double Channel |
| Reaction Time: | 100ms | Connection: | 11-Pin Socket |

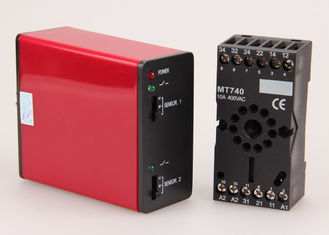

Parking Lot Double Loop Detector Car Detection Sensor For Detect Vehicle Direction
Product Description:
The ILD-410 vehicle loop detector is designed to accommodate numerours applications, can be adjusted intelligently to any environments and virtually liminating false detection.
Four selectable loop frequencies(20~80KHz) can completely eliminate any crosstalk.
Application:
Driveway Control System
Area Vehicle Count System
Parking Lots
double channel loop detector(double channel can detect direction)
1. Easy using and installation
2. Compatible with parking system(barrier gate and ticket box)
3. Two-way or four-way output relays
4. High temperature stability
5. Strong anti-jamming ability and stability
Specifications:
|
Operating voltage: |
220V AC(Default, or 110VAC) |
|
Power Consumption: |
<5W |
|
Output : |
Relay Output |
|
Frequency range: |
20 KHz to 170 KHz (4 grades adjustable) |
|
Reaction time: |
10ms |
|
Signal holding time: |
Unlimited / limited 10 minutes when loop is permanently covered |
|
Sensitivity: |
3 grades |
|
Loop inductance: |
Ideal 100μH to 300μH (include connecting wiring) |
|
|
Max 50μH to 1000μH (include connecting wiring) |
|
Loop Wiring: |
Max. 100m, twisted at least 20 times per meter, total resistance <10 Ohm |
|
Auto correcting time: |
1s to 2s |
|
Operating temp: |
-30℃ to +70℃ |
|
Storage temp: |
- 40℃ to + 85℃ |
|
Relative humidity: |
≤ 95% |
|
Dimensions: |
78×40×108 mm (L×W×H) (include socket ) |
|
Net Weight: |
340g(include socket) |
|
Dimensions |
78x40x108 mm |
