Product Details:
Payment & Shipping Terms:
|
| Material: | ABS | Weight: | 300g |
|---|---|---|---|
| Dimension: | 78x40x108 Mm | Power Supply: | AC220V, 110V DC 24V, 12V |
| Frequency Range: | 20 KHz To 170 KHz | Channel: | Double Channel |
| Reaction Time: | 100ms | Connection: | 11-Pin Socket |

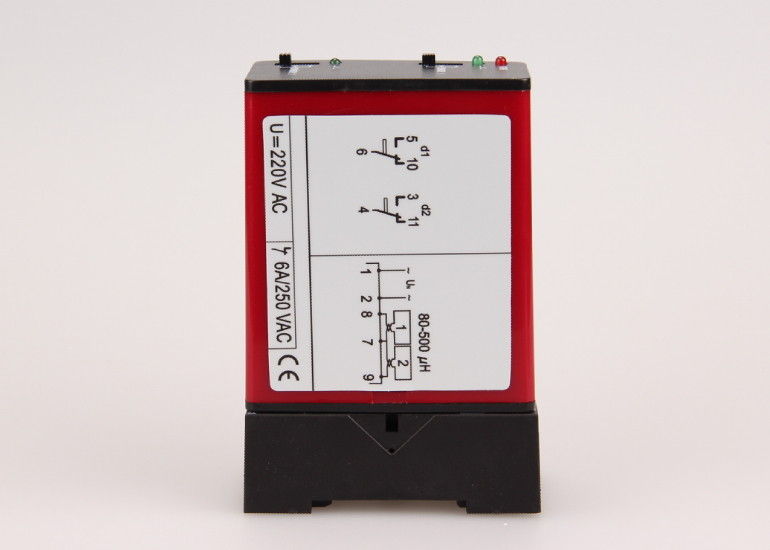

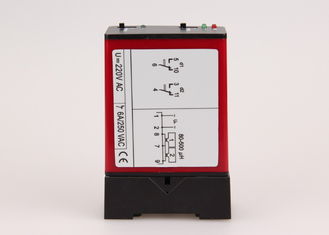

Safety Gate Double Loop Detector Vehicle Detection Loop Alarm System
Product Description:
The IVD-410 vehicle loop detector is designed to accommodate numerours applications, can be adjusted intelligently to any environments and virtually liminating false detection.
Four selectable loop frequencies(20~80KHz) can completely eliminate any crosstalk.
Two-color LED status indicator for Detect,Power,and Loop Fault indication.
Two separate output relays
double channel loop detector(double channel can detect direction)
1. Easy using and installation
2. Compatible with parking system(barrier gate and ticket box)
3. Two-way or four-way output relays
4. High temperature stability
5. Strong anti-jamming ability and stability
Specifications:
The Product has two-way output relays
One is unlimited output when loop is temporarily covered, while the other is multi-mode that can be set by users
Operation Voltage: AC 220V±10%
Power consumption: <5W
Output: relay output
Frequency range: 20kHz to 170kHz (4 grades adjustable)
Reaction time: 100ms
Sensitivity adjusting: 3 grades
Loop inductance:
Ideal: 100uH to 300uH (include connecting wiring)
Maximum: 50uH to 1000uH (include connecting wiring)
Loon connection wiring: recommend down-lead not more than 100 meters, twist 20 times at least per meter for the loop, total resistance ≤10 Ohm
Connection method: 11-pin socket
Shell: PC and ABS engineering plastics
Installation: DIN rail
Operation temperature: -30 to 70 Degree
Storage temperature: -40 to 85 Degree
Relative humidity: ≤95% RH
